CIMC 3-axle Flatbed Semi-Trailer

CIMC 40FT 3-Axle Flatbed Semi-Trailer | 60,000 kg Payload | Heavy-Duty

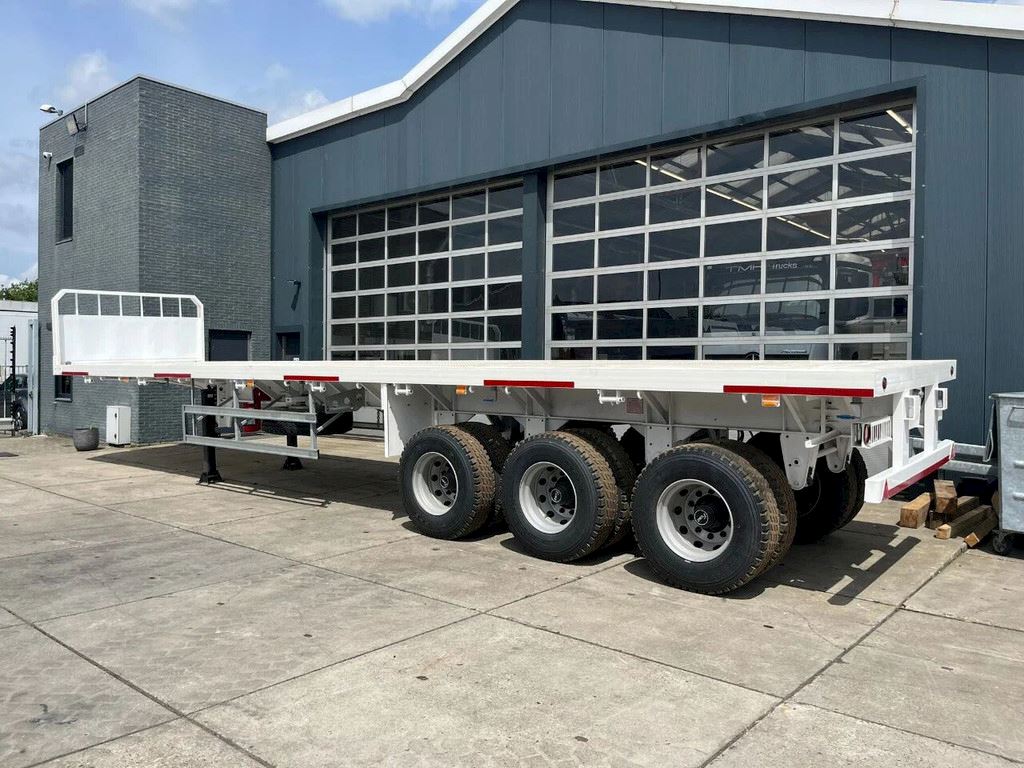

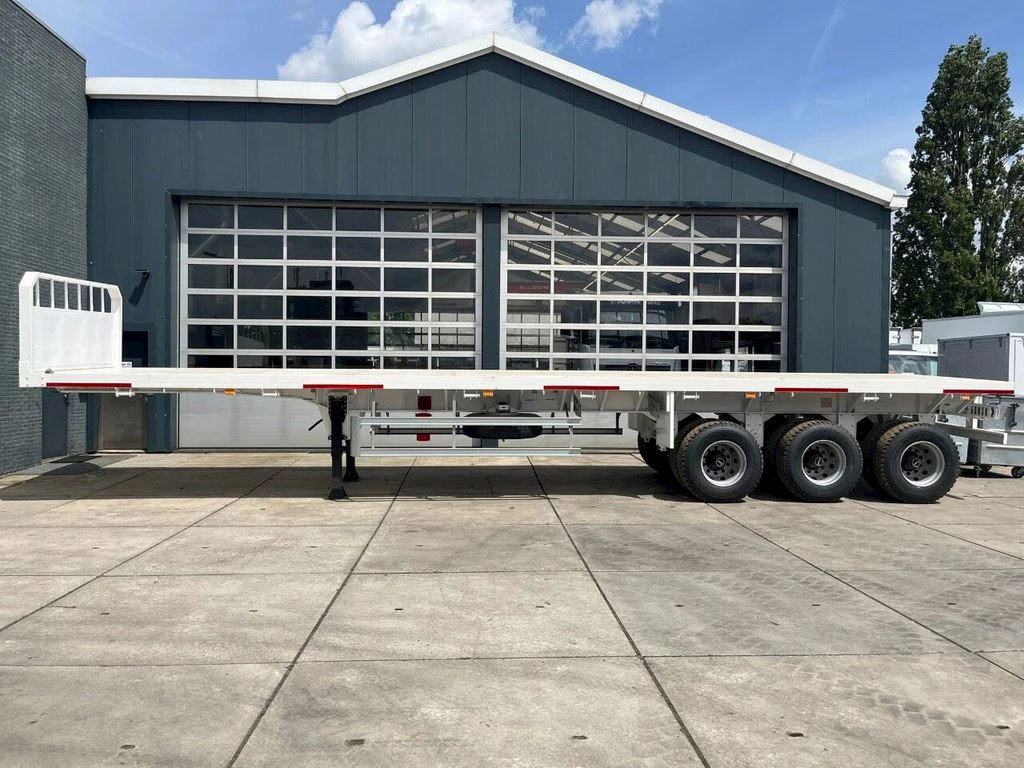

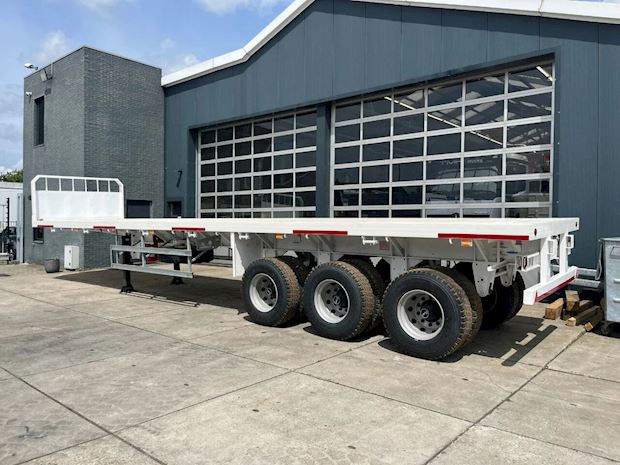

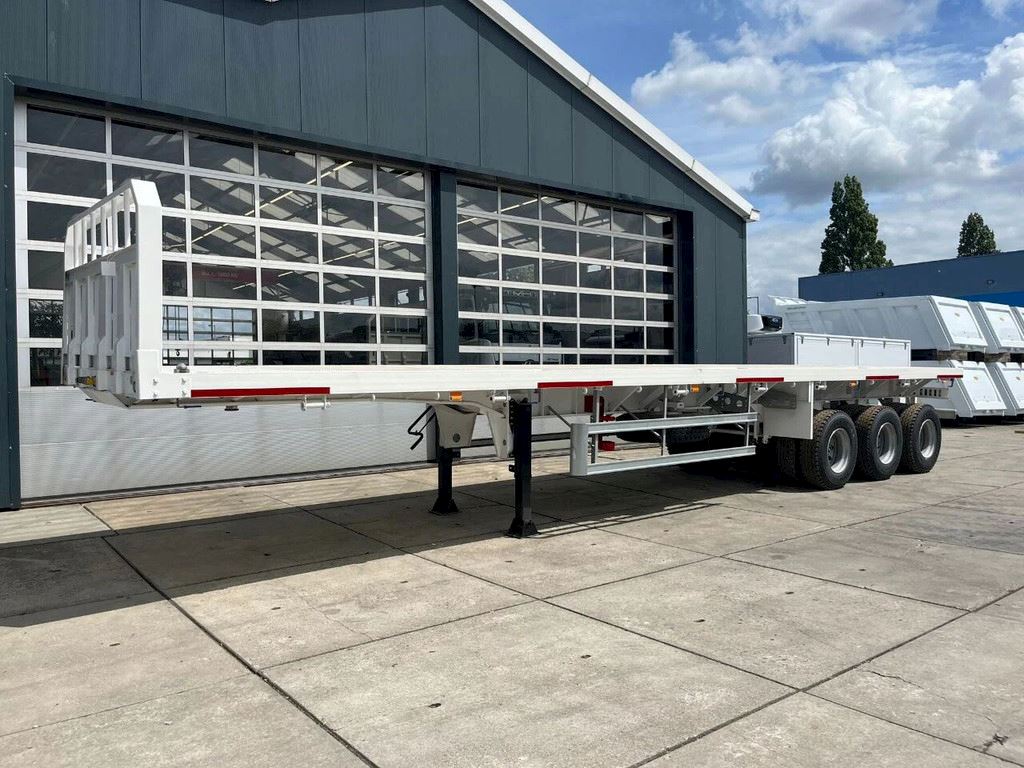

The CIMC 40FT 3-Axle Flatbed Semi-Trailer is a robust and versatile trailer designed for transporting heavy, oversized and irregular cargo. With three FUWA 16-tonne axles, a reinforced steel chassis and a maximum payload of 60,000 kg, this flatbed trailer provides a strong platform for construction materials, machinery, containers and industrial equipment.

Key Highlights
- CIMC 40FT 3-Axle Flatbed Semi-Trailer
- Model ZJV9403JP
- Maximum payload: 60,000 kg
- Gross weight: 68,400 kg
- Tare weight: Approx. 8,400 kg ±5%

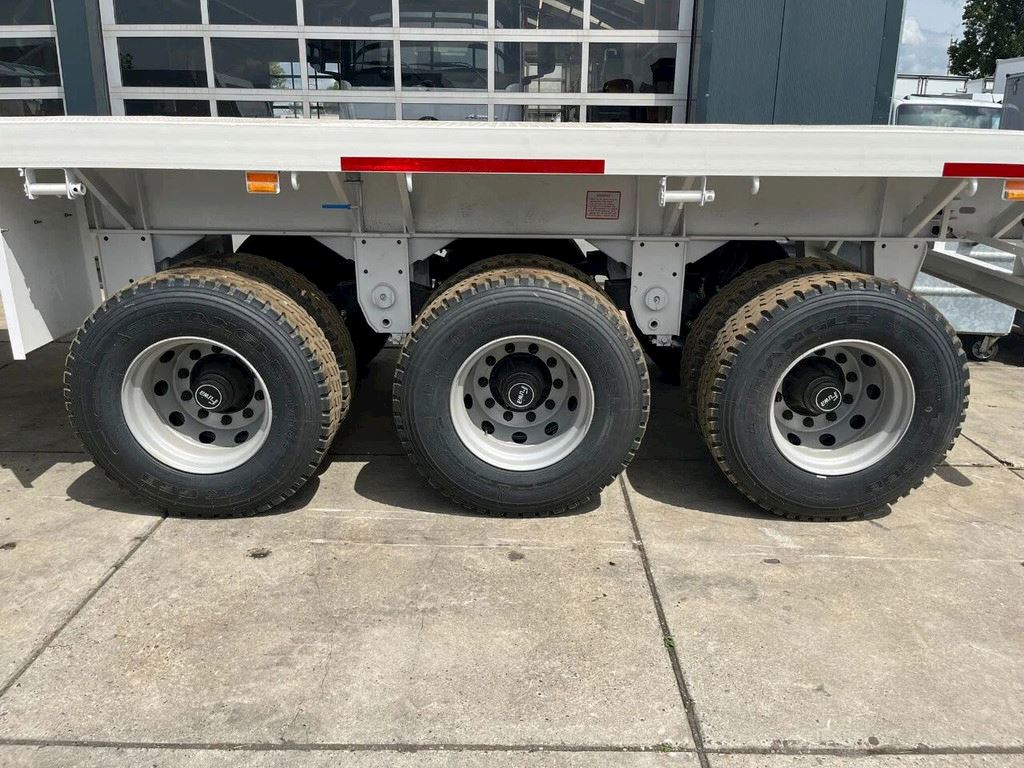

- Three FUWA 16T axles
- Mechanical leaf-spring suspension
- 3 mm steel checker-plate floor
- Heavy-duty steel main beam
- JOST 3.5" bolt-on kingpin
- JOST E100 landing gear
- Dual air-brake system
- WABCO brake valve
- 315/80 R22.5 tyres

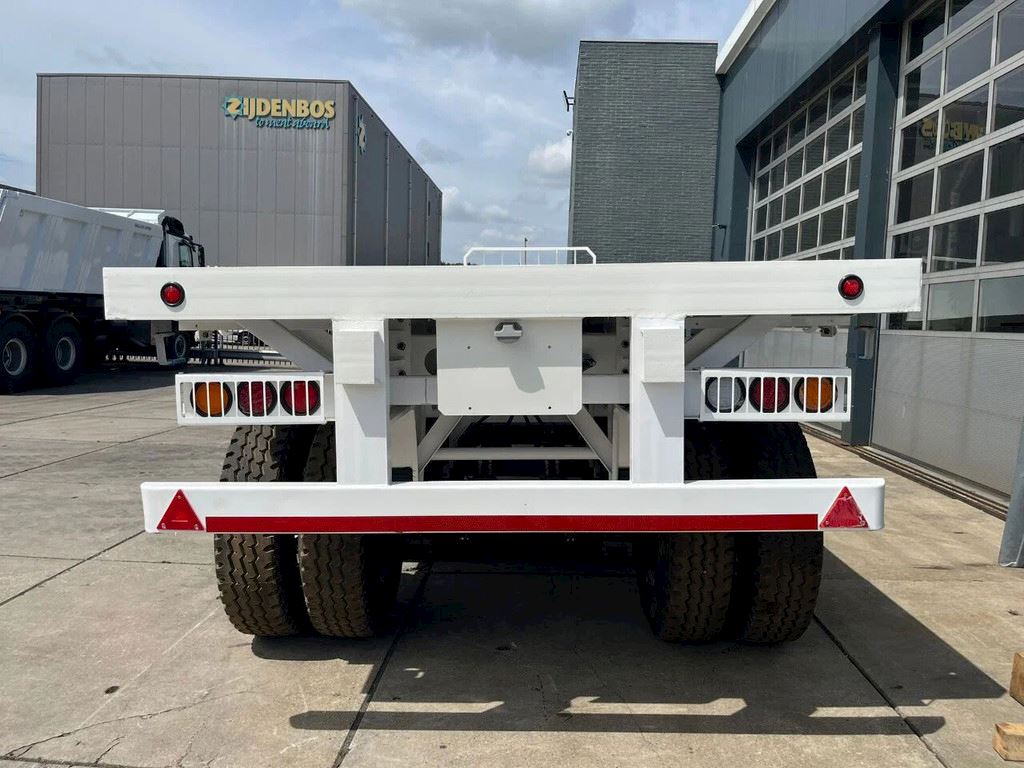

- 24V electrical system with LED lighting
- Container locks for 2x20' or 1x40' containers

Built for Heavy Cargo Transport

The three-axle configuration provides excellent load distribution and stability when transporting heavy cargo. Its reinforced steel construction and durable flat platform make the trailer suitable for intensive commercial operation and demanding transport environments.

The flatbed design provides flexibility for transporting machinery, building materials, containers, pallets and irregular cargo.

Applications
- Construction material transport
- Machinery and equipment transport
- Container transport
- Industrial logistics
- Project cargo
- Oil and gas equipment transport

Technical Specifications
- Type: 40FT Flatbed Semi-Trailer
- Model: ZJV9403JP
- Axles: 3x FUWA 16T
- Maximum payload: 60,000 kg
- Gross weight: 68,400 kg
- Tare weight: Approx. 8,400 kg ±5%
- Length: 12,500 mm
- Width: 2,480 mm

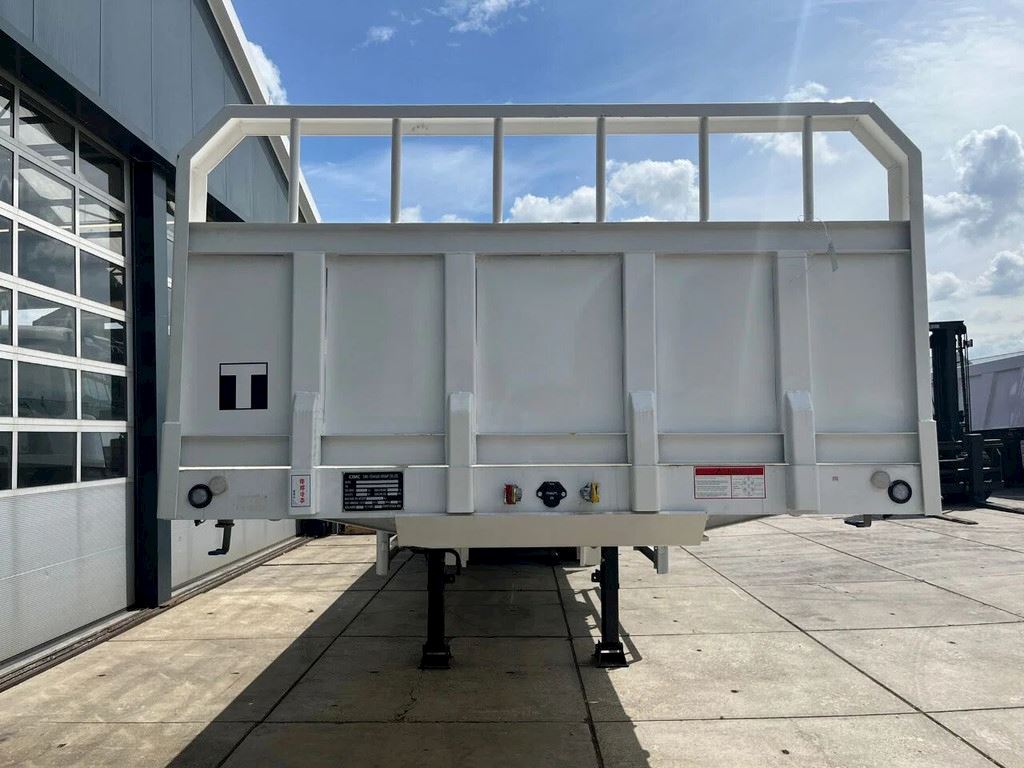

- Front wall height: 1,200 mm
- Tyres: 315/80 R22.5
- Suspension: Mechanical leaf spring
- Kingpin: JOST 3.5"
- Landing gear: JOST E100
- Brakes: Dual air-brake system
- ABS: No
- Colour: White
