Mercedes-Benz Arocs 1836 AK 4x4 Container Chassis

LOOKING FOR A SPECIAL TRUCK? WE’VE GOT YOU COVERED!
The Mercedes-Benz Arocs 1836 AK 4x4 Container Carrier is for sale and has been configured for professional transport operations where off-road mobility, flexibility and reliable container transport are essential. Powered by the proven Mercedes-Benz OM460 12.8-litre EURO-III engine producing 360 HP and 1,800 Nm of torque, this permanent 4x4 Arocs combines Mercedes PowerShift 3 with a heavy-duty all-wheel-drive chassis and specialised 20ft container carrier body.

The container platform has been engineered by Schaften Automotive to securely accommodate standard 20ft containers using dedicated container locking points and a robust chassis-mounted support structure. A 10-ton Dragon Winch installed at the front further increases operational versatility. This Arocs is available for worldwide export.

QUICK HIGHLIGHTS
? Mercedes-Benz Arocs 1836 AK 4x4
? Permanent All-Wheel Drive
? Mercedes-Benz OM460 12.8L EURO III Engine
? 360 HP (265 kW)
? 1,800 Nm Torque
? Mercedes PowerShift 3
? PowerShift Advanced
? 20 ft Container Carrier Platform
? ISO-Style Container Twistlock System
? Schaften Automotive In-House Body Construction
? Dragon Winch – 10 Ton Capacity
? Heavy-Duty Off-Road Chassis
? Factory PTO
? Hot Climate Cooling Package
? Cyclone Dust Filtration
? N3G Off-Road Vehicle Classification
? Cross-Country 365/85 R20 Tyres
? Ready for Worldwide Export

Built for 20 ft Container Transport
Remote transport operations often require equipment that can perform far beyond conventional road conditions.

The Mercedes-Benz Arocs 1836 AK combines a permanent 4x4 drivetrain with a purpose-built container carrier platform designed around the dimensions of a standard 20 ft ISO container.

The body has been constructed by Schaften Automotive using a heavy-duty steel support structure integrated with the truck chassis. Dedicated twistlock positions secure the container at its corner castings, creating a stable connection between vehicle and load while still allowing the container to be removed when operational requirements change.

This makes the truck particularly useful for operations where containers are used as mobile workshops, equipment stores, technical units, command centres, mobile hospitals or general cargo modules.

Schaften Automotive In-House Container Body
A container carrier used in demanding environments needs more than a basic flat platform.

The body has been developed in-house by Schaften Automotive with durability, simplicity and practical field operation in mind. The structure is designed to distribute the container weight across the chassis while providing a robust mounting foundation for repeated commercial use. The integrated twistlock layout allows a standard 20 ft container to be positioned and secured directly onto the carrier platform. This creates a versatile vehicle that can work with different containerised solutions without permanently dedicating the chassis to one application. We even added a modified stair for easy entering the container if needed.

By engineering and assembling the body in-house, Schaften Automotive combines proven Mercedes-Benz chassis technology with a practical body solution constructed according to Dutch quality standards.

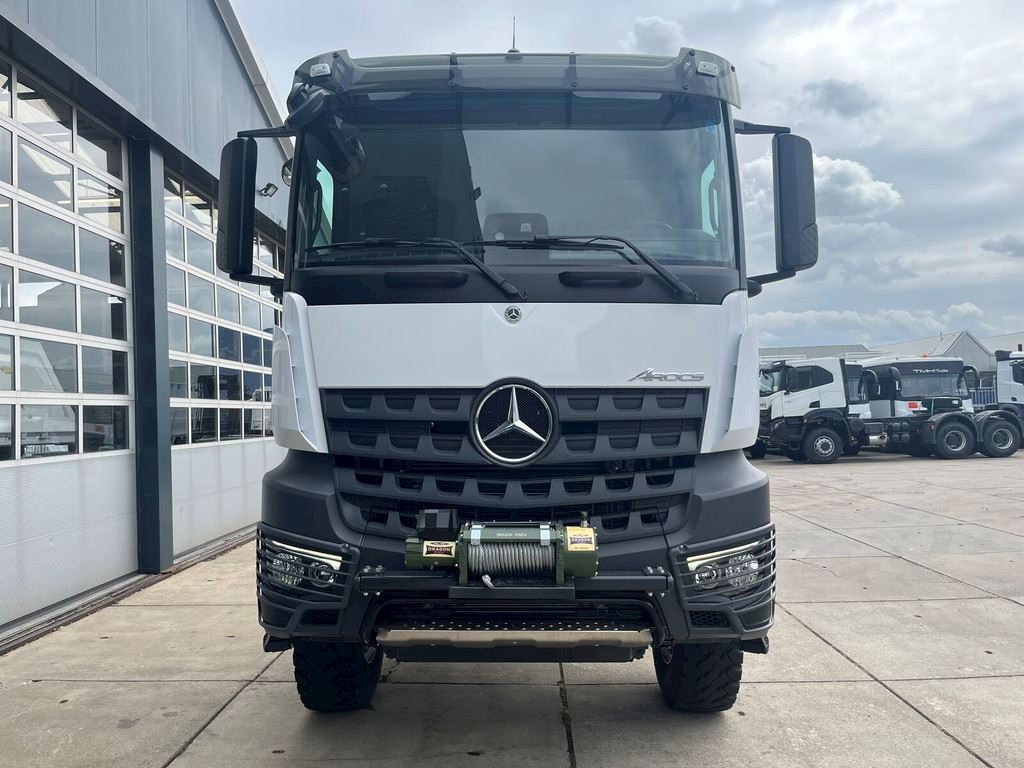

Dragon Winch 10 Ton for Recovery & Site Support
Off-road projects rarely take place under ideal conditions.

A heavy-duty Dragon Winch with a rated pulling capacity of 10 tonnes has therefore been installed at the front of the vehicle. The front-mounted winch provides additional support during challenging site operations and can be used for recovery assistance, controlled pulling operations and positioning equipment where normal vehicle traction alone may not be sufficient.

Combined with the permanent 4x4 drivetrain, differential lock and high-clearance construction chassis, the winch adds another layer of versatility for mining sites, construction areas, remote infrastructure projects and difficult-access locations.

Permanent 4x4 Mercedes-Benz Drivetrain
Reliable container transport in remote environments starts with dependable traction.

The Arocs 1836 AK uses a permanent 4x4 drivetrain with a Mercedes-Benz VG 2800 transfer case, front differential lock and heavy-duty planetary rear axle.

The straight front axle, reinforced suspension and cross-country 365/85 R20 tyres provide the ground clearance and traction required for operation on sand, gravel, mud and unpaved project roads.

Mercedes PowerShift 3 with PowerShift Advanced manages the 360 HP delivered by the OM460 engine, while the dedicated off-road driving programme adapts the transmission behaviour to demanding operating conditions.

Designed for Hot, Dusty & Remote Environments
Commercial vehicles operating in remote regions must be prepared for more than rough terrain.

This Mercedes-Benz Arocs is equipped with a cooling package for very hot regions, elevated air intake behind the cab, cyclone filter for coarse dust, construction-site filtration and an additional chassis-mounted fuel pre-filter. These factory-installed features help protect important engine and fuel-system components when the truck is operating in hot, dusty or remote environments where vehicle reliability is critical.

The steel bumper corners, towing equipment and metal headlamp protection further reinforce the vehicle's construction-focused specification.

Ideal Applications
The Mercedes-Benz Arocs 1836 AK 4x4 Container Carrier is particularly suitable for:
- Mining & Quarry Operations
- Remote Construction & Infrastructure Projects
- Oil, Gas & Energy Support
- Mobile Workshop & Equipment Containers
- Humanitarian & Emergency Logistics
- Remote Site & Utility Operations

Technical Specifications
- Vehicle: Mercedes-Benz Arocs 5 1836 AK
- Vehicle Type: 20 ft Container Carrier
- Drive Configuration: Permanent 4x4 All-Wheel Drive
- Engine: Mercedes-Benz OM460 Inline 6
- Displacement: 12.8 Litres
- Power: 360 HP (265 kW)
- Torque: 1,800 Nm
- Emission Standard: EURO III
- Transmission: Mercedes PowerShift 3 / PowerShift Advanced
- Gearbox: Mercedes-Benz G 230-12
- Transfer Case: VG 2800-3W
- Gross Vehicle Weight: 16,500 kg
- Front Axle Capacity: 7,500 kg
- Rear Axle: Heavy-Duty Planetary Rear Axle
- Wheelbase: 4,200 mm
- Container Capacity: Standard 20 ft Container
- Container System: Heavy-Duty Twistlock Carrier Platform
- Winch: Dragon Winch – 10 Ton
- PTO: Mercedes-Benz MB131-2c
- Fuel Capacity: 290 Litres
- Cab: ClassicSpace S-Cab
- Vehicle Classification: N3G Off-Road
- Tyres: 365/85 R20 Continental HCS Cross Country
- Steering: Left-Hand Drive (also available in right hand drive)

Why Buy from Schaften Automotive?
Since 1977, Schaften Automotive has specialised in supplying premium commercial vehicles from leading European manufacturers. With more than 150 vehicles in stock, we offer immediate availability for customers worldwide.

From export documentation and international transport to custom-built vehicle bodies assembled according to Dutch quality standards, our experienced in-house team manages the complete process—providing one reliable partner from purchase to delivery.

Availability & Worldwide Export
Looking for a Mercedes-Benz Arocs 1836 AK 4x4 for sale or a 20 ft container carrier for demanding international projects?

This Arocs combines a proven Mercedes-Benz all-wheel-drive chassis with a Schaften Automotive container carrier body, allowing customers to transport standard 20 ft containers into locations where conventional road trucks may struggle.

Schaften Automotive can support worldwide export, documentation, international transport and vehicle preparation, providing one complete solution from purchase to final delivery.

Interested in the Mercedes-Benz Arocs 1836 AK 4x4 Container Carrier?
Contact Schaften Automotive for current availability, pricing, complete technical specifications and worldwide export possibilities.
